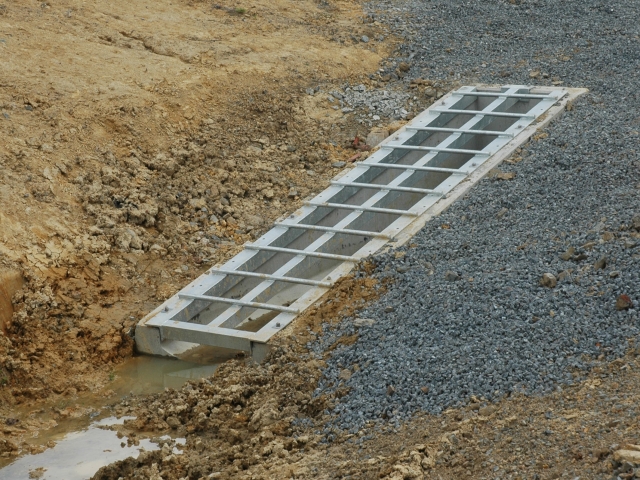

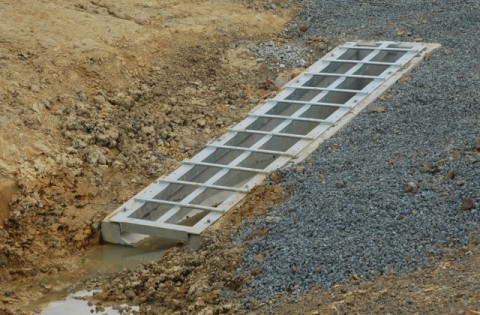

Transit Concrete Culvert Ends
In conjunction with NZTA, Humes has developed precast concrete headwalls for pipes running either parallel or perpendicular to the carriage way.
Add to my enquiry
Share
via email
Benefits
- Reinforced Concrete structure with concrete strength of 40Mpa
- Cast as one single unit which eliminates the issues associated with the jointing of old and new concrete, such as shrinkage cracks and integrity of the epoxy joint
- One size headwall accommodates pipe diameters from 225 to 450
- Soft spots for ease of installation
- The bottom of the headwall has a circular profile, which allows the debris to be washed away easily when compared to a flat bottom
- NZTA approved grating has been independently tested by Opus for its load bearing capacity
Application
- Stormwater drainage
- Culverts
- Drainage
