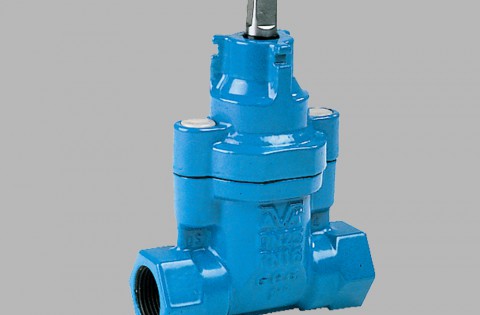

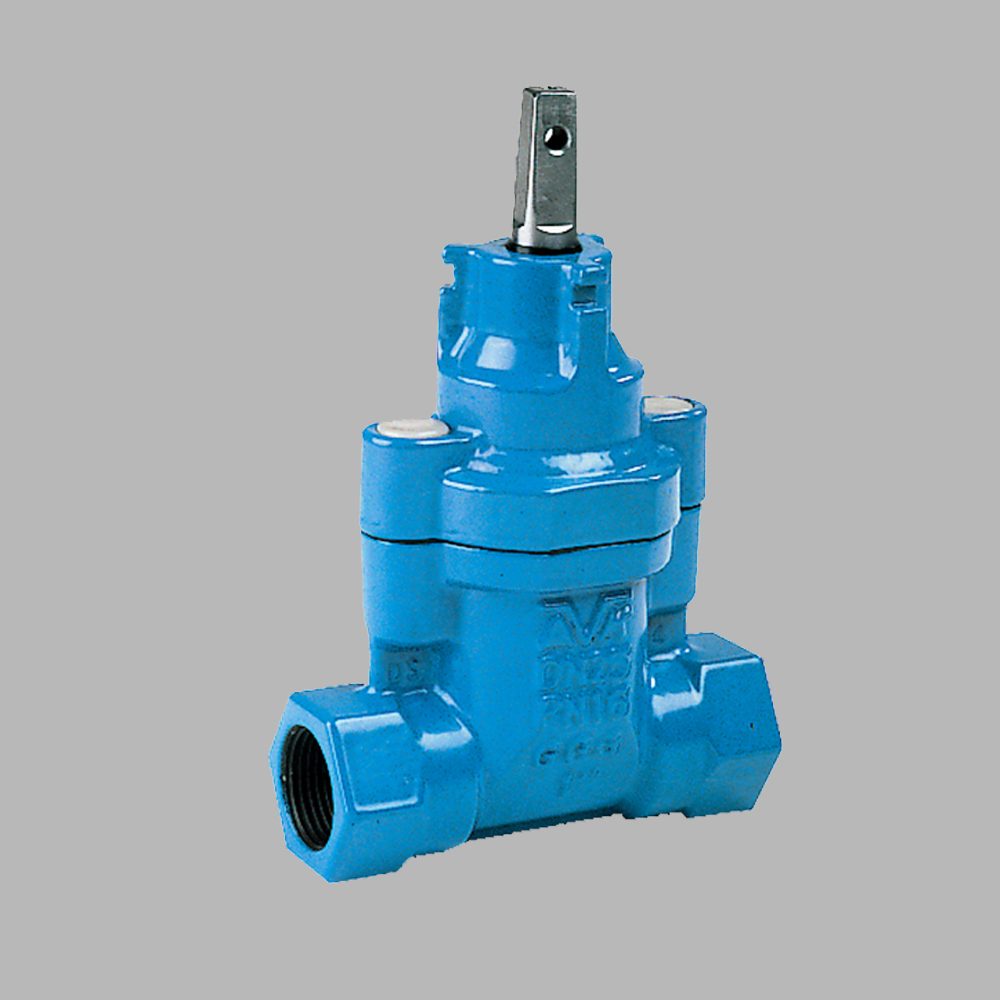

Service Connection Valves
Humes offer AVK's unique range of Service Connection Valves from Ductile Iron, Stainless Steel stem and fasteners with PE & BSP connections and push fit ends
Add to my enquiry
Share
via email
Benefits
- Ductile Iron body to AS 1831
- SS stem and fasteners
- Coating – thermally bonded epoxy resin to Din 30677
- Wedge – DZR brass to AS 2341 encapsulated in EPDM
- PE & BSP end connections
- Push fit ends
- Size Range DN20-50 & PE32 – PE63
- Rated to PN16
- Handwheels & stem caps available
Application
- Potable water systems
- Wastewater systems
- Irrigation systems
- Stormwater systems
Humes AVK Service Connection Valve PN16
240 KB
pdf
Humes AVK BSP Service Connection Valve PN16 03/00
151 KB
pdf
Humes AVK PE Push Lock Service Connection Valve PN16 03/30
170 KB
pdf
Humes AVK Service Connection Valve PN16 03/40 and 03/60
208 KB
pdf
Humes AVK Service Connection Valve PN16 series 16/50
191 KB
pdf
Humes AVK Push to Thread Right Angle Service Connection Valve PN16 11/30
222 KB
pdf
Humes AVK Service Connection Valve PN16 BSPF25
Humes AVK Service Connection Valve PN16 BSPF25
7 KB
DWG
Humes AVK Service Connection Valve PN16 BSPF50
Humes AVK Service Connection Valve PN16 BSPF50
7 KB
DWG
